10T Hydraulic Cylinder Jack Porta Power Ram Kit with CP-180 Hydraulic Hand Pump 11mm/0.43' Stroke Single Acting Lifting Cylinder Retract Automatically for Machinery Shipbuilding Bridge Construction

Introductions: This low profile hydraulic ram is small in size,strong in load-bearing capacity.The load capacity is 10 ton,It is especially suitable for use in narrow spaces and has the characteristics of lightness and flexibility Hydraulic Ram Specifications: 1. Load Capacity (Tonnage) :10 ton 2. Material: Cast iron 3. Color: Yellow 4.Item weight: 3.3lbs/ 1.5kg 5.Outer diameter : 3.27x2.56 inches/83x65mm 6.Internal diameter：2.48 inches/63mm 7.Effective area: 1.5 inches/38mm 8.Piston rod diameter：1.81 inches/46mm 9.Fixed hole spacing x screw size : 0.315 inches/8 mm 10.Minimum Lift Height :10mm(0.394") 11.Maximum Lift Height:10mm(0.394") 12.Style: Ultra-thin 13.Jack Power Type: Hydraulic 14: Durable Material:Made of heavy duty cast iron,strong and sturdy,can be used for a long time 15: Effortless Operation and Automatic Retraction:The jack offers easy operation.Once the pressure is released,the piston retracts automatically,removing the need for external force Hydraulic Hand Pump Specifications: 1.Oil capacity: 350CC 2.high pressure output: 60kg/cm² 3.high pressure flow rate:20CC 4.oil pipe coupling with: ZG 3/8" female quick connector 5.Hose length : 36.22"/ 92cm 6.Item weight: 8.38lbs/ 3.8kg Attention: Please pay attention that this hydraulic ram and pump can not be suitable for car using,thanks Attention 1. Not to be used at an angle,for proper operation,all cylinders need to be used on firm and flat surfaces,not on soft or rough surfaces.Please note that incorrect use will likely damage the jack or cause serious safety accidents 2. For safety in use,it is recommended to use oil-free wood,which can enlarge the pressure-bearing surface. In addition,in order to avoid sliding,iron plates CANNOT be used to lift things Package Includes: 1 x 10 Ton Hydraulic Ram Jack 1 x CP-180 Hydraulic Hand Pump

• 【Hydraulic Ram Jack Parameters】: Tonnage: 10T,Stroke: 11mm/0.43',Self height: 1.97"/50mm,Outer diameter: 3.27x2.56 inches/83x65mm,Internal diameter: 2.48 inches/63mm,Effective area: 1.5 inches/38mm,Piston rod diameter: 1.81 inches/46mm,Fixed hole spacing x screw size: 0.315 inches/8 mm,Item weight: 3.3lbs/ 1.5kg,Used with Pump: CP-180
• 【Hydraulic Hand Pump Parameters】: Oil capacity: 350CC,high pressure output: 60kg/cm²,high pressure flow rate:20CC,oil pipe coupling with: ZG 3/8" female quick connector,Hose length : 36.22"/ 92cm, Weight: 8.38lbs/ 3.8kg,please note that when using the CP-180 manual hydraulic pump,which has a relatively small oil volume,you may need to press the handle several times to slowly lift the hydraulic jack. This is not the pump quality issue
• 【Smooth paint surface and dust-resistant cover】: The hydraulic cylinder has a smooth paint surface,which not only makes its appearance smooth,but also has good rust resistance. This hydraulic cylinder jack is made of heavy-duty cast iron and is durable.In addition,it is equipped with a dust cover to ensure that the internal components remain clean and in optimal working condition for a long time

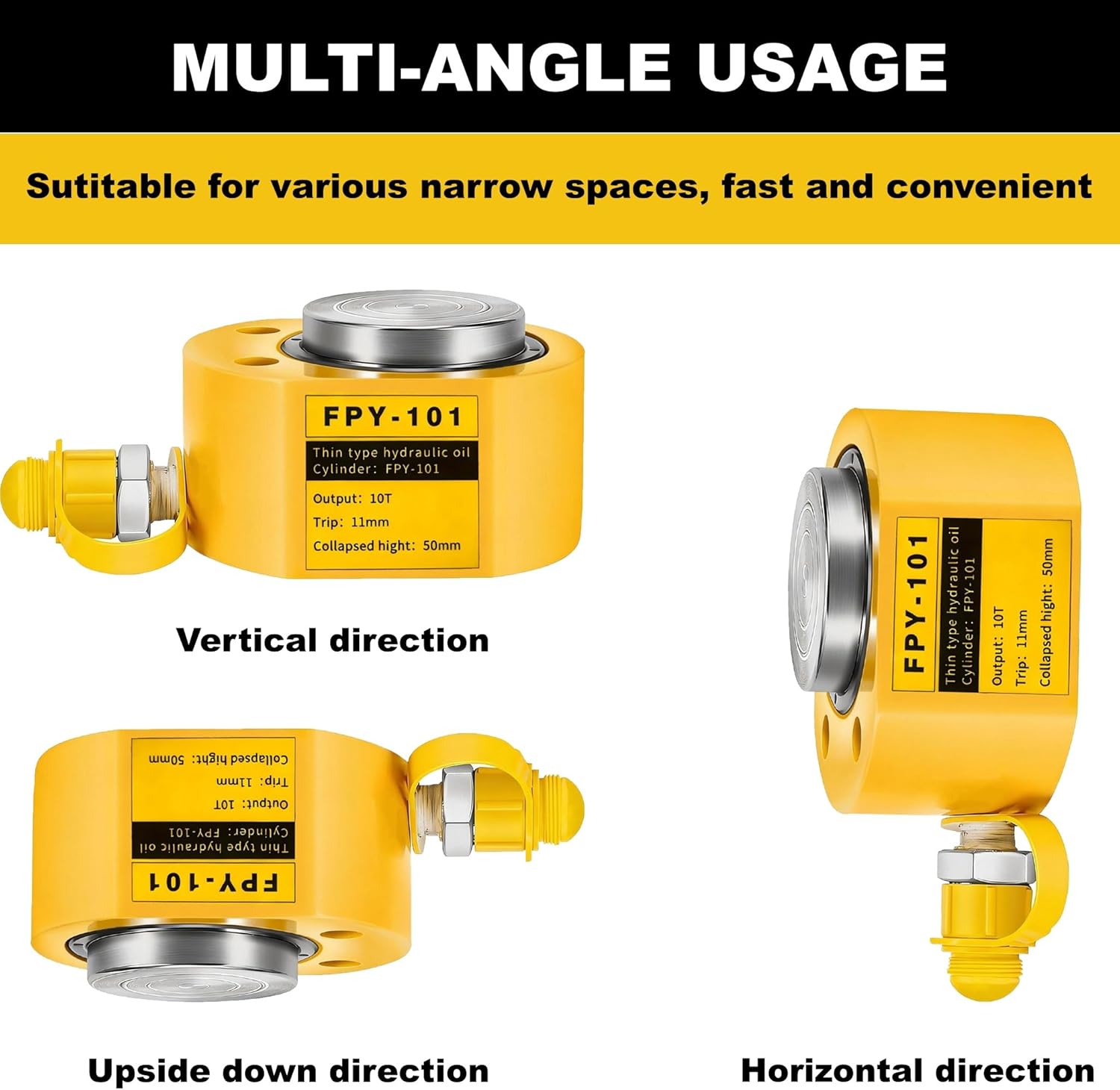

• 【Use Easily Safe】: This Hydraulic ram jack tonnage is sufficient,the stroke is sufficient,will not be stuck or burst cylinders.After the pressure is released,the jack can automatically retract.Vertical, horizontal and inverted orientations are available.Can be used in narrow spaces.All cylinders need to be used on firm and flat surfaces,not on soft or rough surfaces.Please note that incorrect use will likely damage the jack or cause serious safety accidents
• 【Wide Applicable】: Widely used in construction sites,petroleum,electric power,metallurgy,chemical industry,ships,bridges,steel and other industries for the installation and maintenance of large and medium-sized machinery and equipment.But not suitable for car using
• 【Various Functions】: Such as lifting,jacking,shoveling and splitting,and can be quickly installed by quick coupling,this 10T hydraulic cylinder jack is perfectly compatible with the CP-180 pump
• 【Low Profile & Portable】: This mini hydraulic cylinder is ultra-thin,portable,but strong in load-bearing capacity,which is especially suitable for lifting and supporting work in narrow spaces

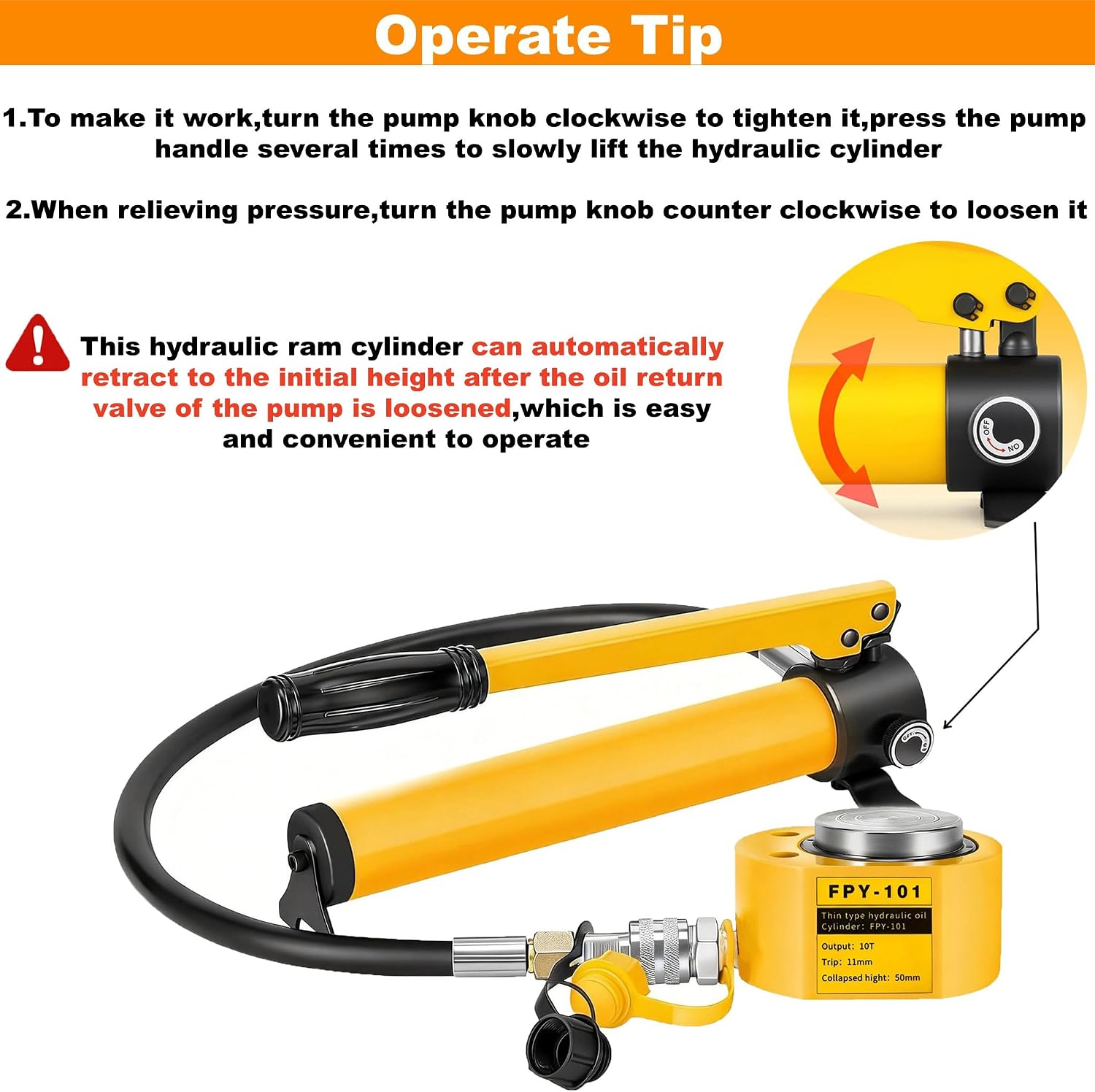

• 【Automatically Retract】: This hydraulic ram cylinder can automatically retract to the initial height after the oil return valve of the pump is loosened,which is easy and convenient to operate

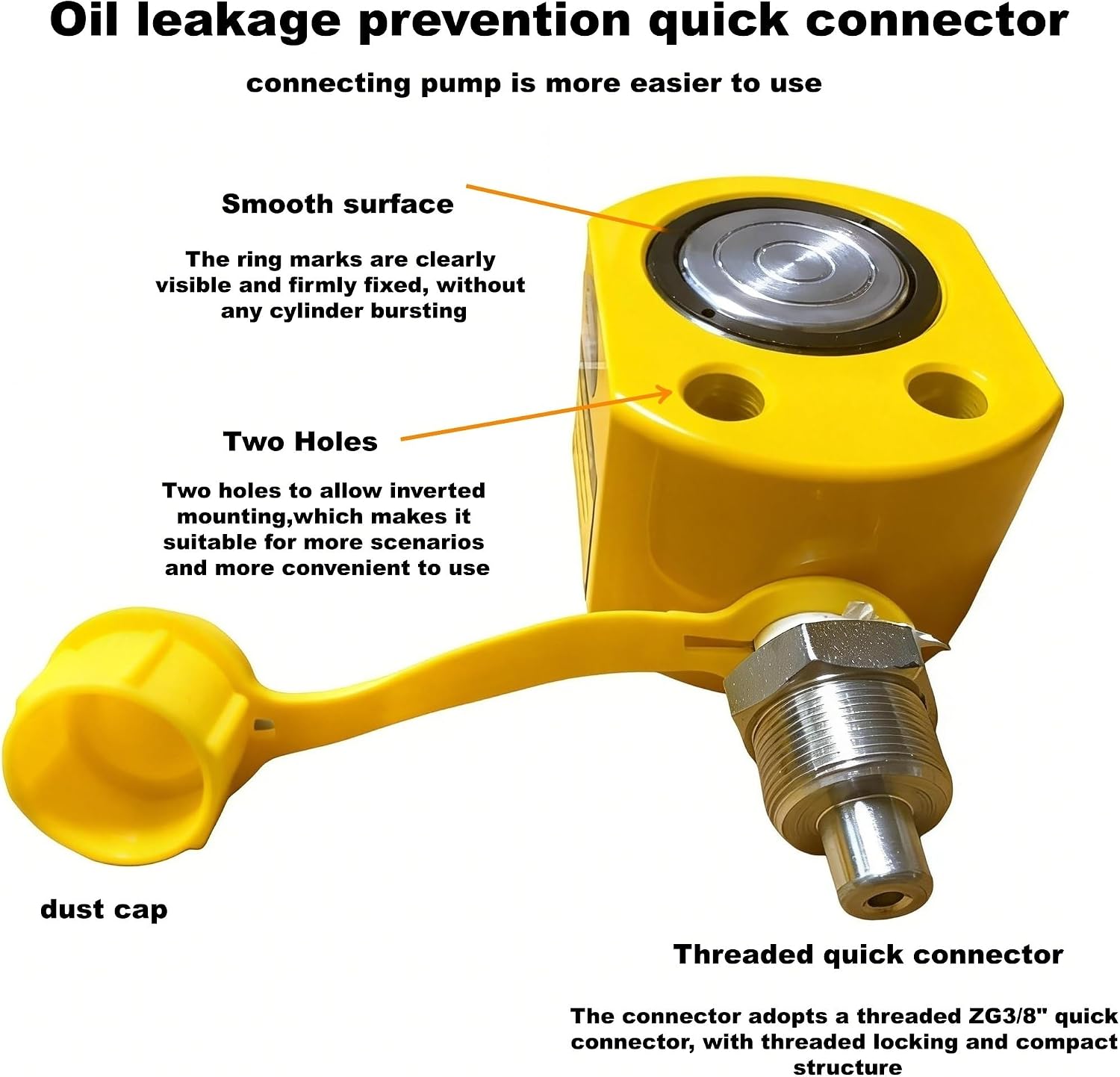

• 【Two Holes】: The cylinder has two holes to allow inverted mounting,which makes it suitable for more scenarios and more convenient to use
