Asymmetric Cycle Time Relay 1SPDT 16A，GRT8-S1 Long or Short Period Repeat Cycle Tntermittent Timer Electronic Relay in Din Rail Wide Voltage Range AC DC 12V to 240V
US$10.80
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by blizzdubiouz.ch
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$10.80
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by blizzdubiouz.ch
Free 30-day returns Details
Product details
| Management number | 228173936 | Release Date | 2026/05/31 | List Price | US$10.80 | Model Number | 228173936 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- FUNCTION MODE: Control the closing or opening of the circuit through the delay function of the asymmetric cycle timer relay grt8-s1, and repeat the cycle. Select A1 and A2 ports, delay on t1 and then delay off t2; select short S-A1 port, delay off t2 and then delay on t1, automatic repeat

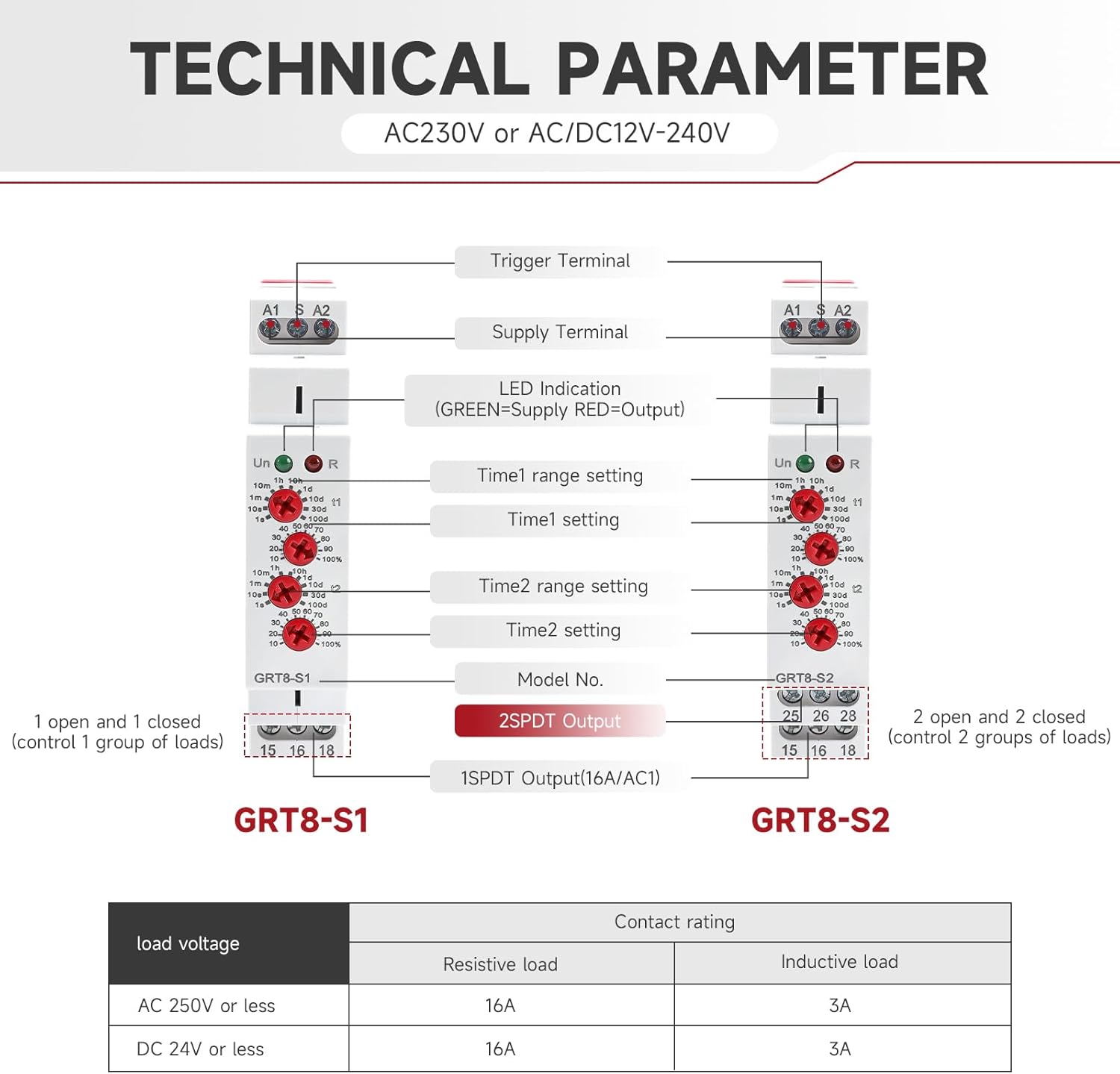

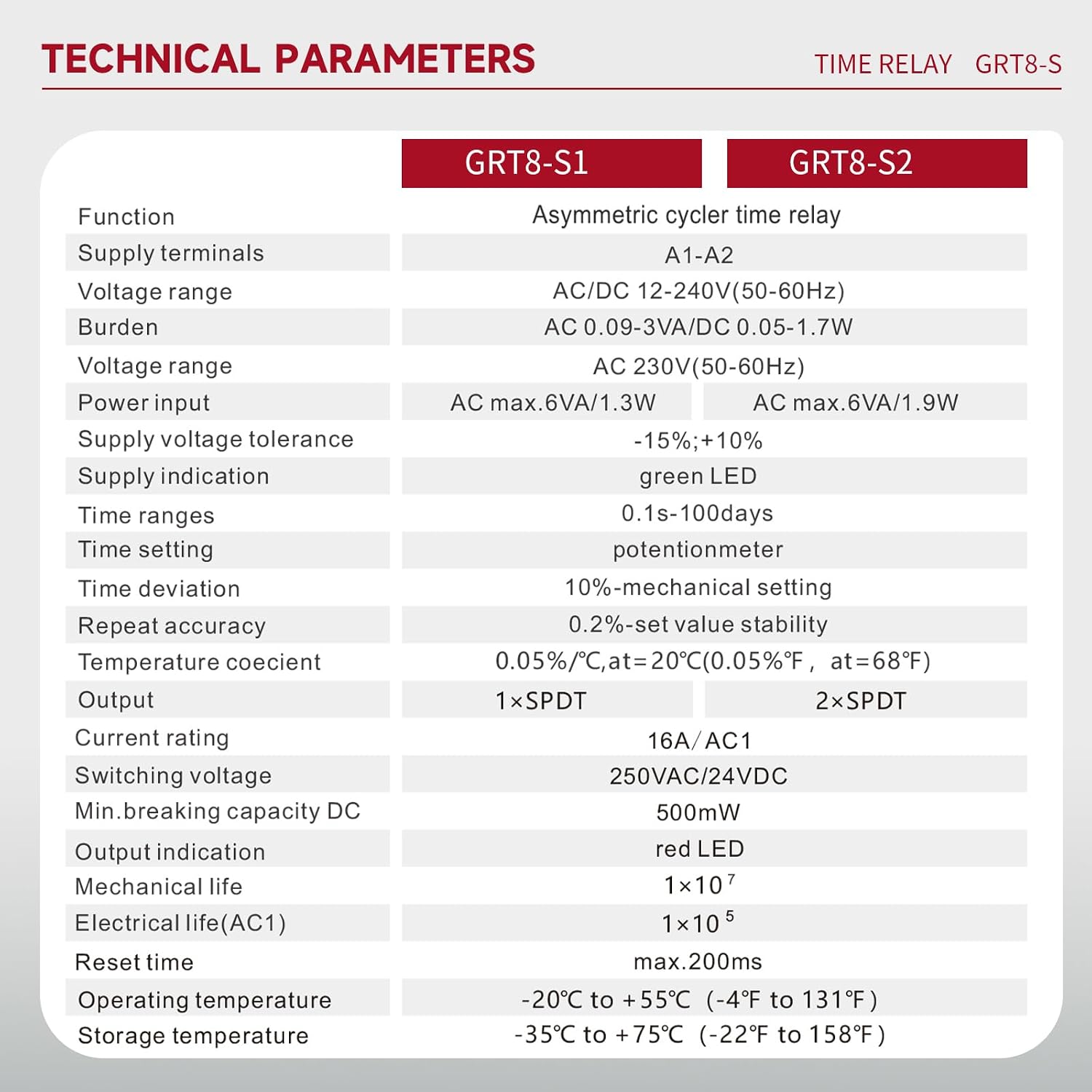

- PARAMETER RANGE: number of outputs：1SPDT（1NO 1NC） rated current: 16A rated voltage: AC DC 12V to 240V (50-60Hz) (power supply allowable range: -15%; +10%) cycle timer delay range: 0.1s-1s/1s-10s/6s-60s/1min-10min/6min-60min/1h-10h/0.1d-1d/1d-10d/3d-30d/10d-100d

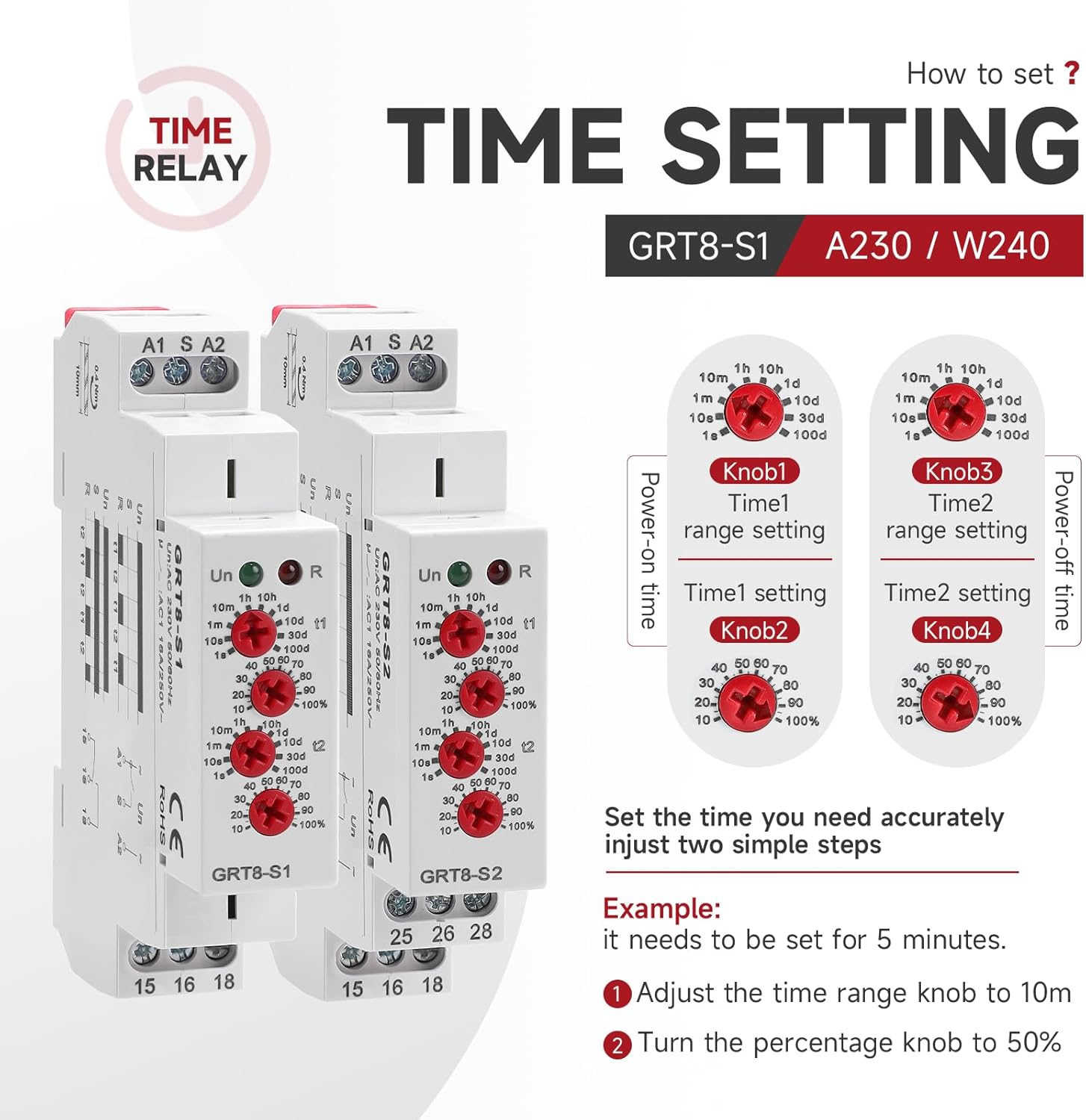

- USE & STATUS: the t1 group of the timer relay 12v dc ac has two knobs. The first knob is used to select the delay time gear, and the second knob is used for the time percentage multiple. The same applies to the t2 knob group. When the 120v timer relay is turned on, the green indicator light indicates the relay power supply, and the red indicator light indicates the delay and contact status.
- MATERIAL & SIZE: din rail timer relay uses an ABS plastic sealed housing and complies with CE, CB, and RoHS, timer relay module measures 2.88 inches x 3.68 inches x 0.9 inches, weighs approximately 3 ounces, and is mounted on a 35 mm Din rail.
- WORRY FREE AFTER-SALES SERVICE: We provides a 30 day no reason return and a 3-year warranty for this product. If you have any questions about installation or use, or if you encounter any problems during use, please feel free to reach up to us at any time
| ASIN | B0DYVDQFZ4 |
|---|---|
| Brand Name | IGEYAPA |
| Unit Count | 1.0 Count |
| Screen Size | 2.88 Inches |
| Manufacturer | IGEYAPA |
| Model Number | GRT8-S1 AC/DC 12V-240V |
| Material Type | Brass, Plastic |
| Number of settings | 14 |
| Manufacturer Part Number | GRT8-S1 AC/DC 12V-240V |
| Item Dimensions D x W x H | 3.68"D x 0.9"W x 2.88"H |
