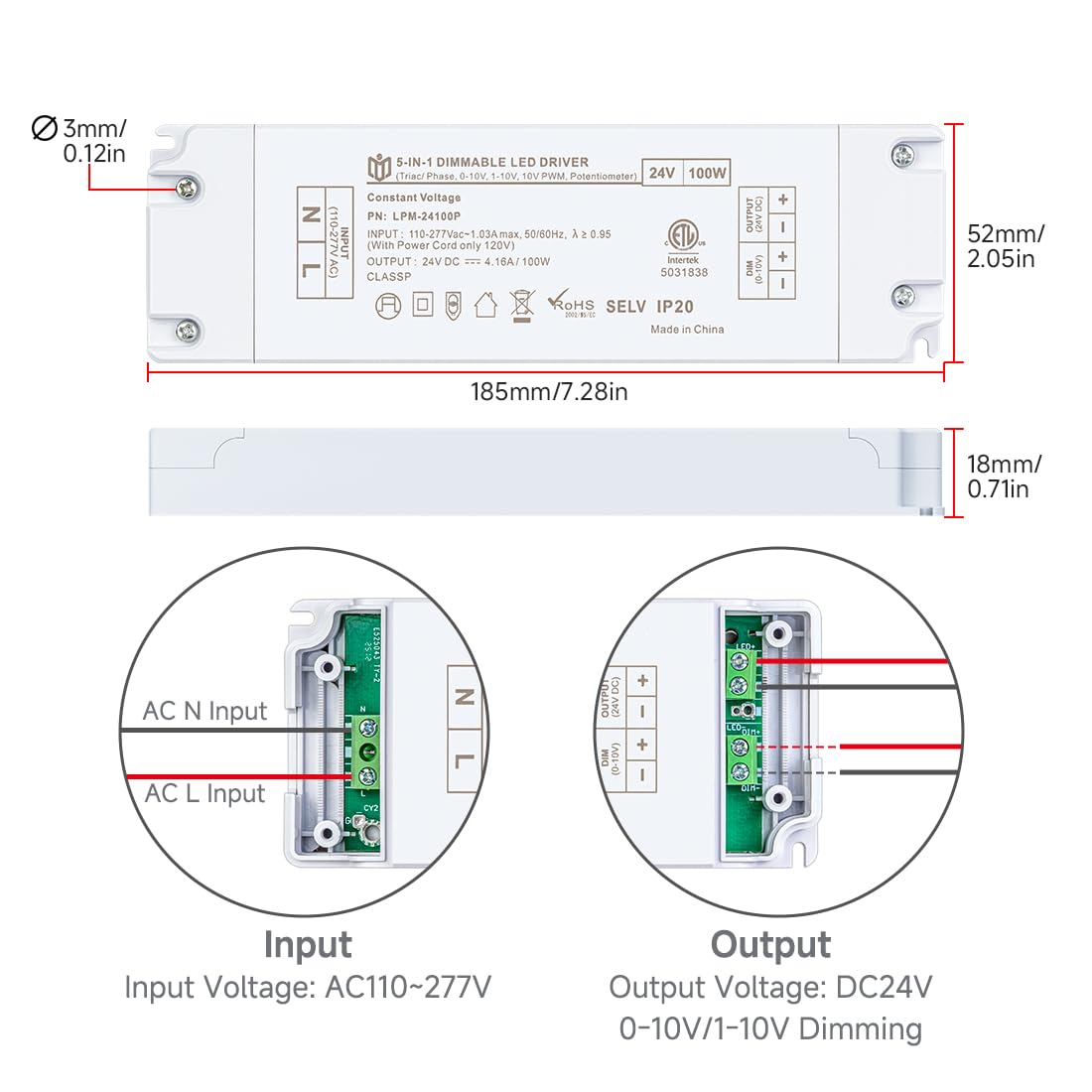

BTF-LIGHTING 24VDC ETL Listed Dimmable Power Supply,100W Triac/ELV/MLV/0-10V/1-10V/10V PWM/Potentiometer LED Driver,Input AC110V-277V Constant Voltage for LED Strip,Flicker-Free,Type HL,Class P,FCC
Product details
| Management number | 222124327 | Release Date | 2026/05/04 | List Price | US$24.00 | Model Number | 222124327 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【5-in-1 Dimming Power Supply】Constant Voltage Dimmable LED Driver.5-IN-1 Dimming Triac/MLV/ELV/0-10V/1-10V/10V PWM/Potentiometer .TRIAC/MLV (Leading Edge) Dimming,Electronic Low Voltage (ELV) Dimming.0-10V/1-10V Dimmng.Compatible with Lutron Leviton switches ,receivers and controls for secondary side dimming.
- 【Protection】Short Circuit:Hiccup mode, recovers automatically after fault condition is removed. Over Load:≤120% Hiccup mode,recovers automatically after fault condition is removed.Over Temperature:100 ±10 shut down o/p voltage, automatically recover after cooling.
- 【5-way universal dimming】Smooth flicker-free dimming, down to 0.1% .Dimming range: 0.1-100%, flicker-free.PWM Output: 4000Hz constant frequency. Super low loading request, works perfect at 10-100% load. Ultra thin plastic housing for dry and damp location, IP20. Build in active PFC, typical power factor >0.65, THD<10%@120V Max. Load.Dimming curve can be customized.
- 【Safety is engineered into every detail】Our 5-in-1 dimmable driver has passed rigorous tests to earn ETL Listed, Class 2,CLass P,Type HL,FCC,Title 24/JA8 Qualified ,UL8750 Safety Standards and RoHS certifications, effectively guarding against short circuits, overheating and overloads for reliable, hazard-free performance.
- 【Versatile Indoor Applicationl】Suitable for a range of low-voltage LED installations, including LED tape lights, and commercial or domestic lighting projects such as in offices, hotels, and retail displays.
- 【AC110V-277V Input】Input 110-277V,Frequency Range 47-63Hz,THD<10% ,AC Current (Typ.) 0.35A . Output 24VDC 100W
- Package Contents: 1 x Power Supply. Power cord is not included.Note :Different input AC voltage standards apply to AC input power cord selection. Never use a AC120V-rated input power cord to connect to AC277V.
| Model | LPM-24100P |
|---|---|
| Brand Name | BTF-LIGHTING |
| Part Number | 24V100W |
| Manufacturer | Zhongshan Tuozhi Technology Co Ltd |
| Power Source | Corded Electric |
| Mounting Type | Plug In |
| Current Rating | 4.2 Amps |
| Specification Met | ETL, FCC, RoHS |
| Included Components | 1x ETL Power supply |
