Elecom DPA-SS08BK Monitor Arm, Display Arm, VESA 17-32 Inches, Load Capacity 4.4-19.8 lbs (2-9 kg), Single Arm, Short, Gas-Type, Black

Specifications: ■ Compatible Size: 17 - 32 inches ■ Load Capacity: Approx. 4.4 - 19.8 lbs ■ Dimensions: Width approx. 4.6 inches (117 mm) x Depth approx. 18.5 inches (468 mm) x Height approx. 22.4 inches (■Weight: Approx. 4.1 lbs (2.05 kg). ■Color: Black ■Number of screen installation: 1 screen ■Material: Steel, aluminum alloy, ABS ■ Movable Method: Gas spring type ■ Compatible Standards: VESA (3.0 x 3.0 inches (75 x 75 mm), 3.9 x 3.9 inches (100 x 100 mm). ■ Movement range: Pan: Left 90° / Right 90° Rotation: 360° Tilt: Up 90° / Down 45° ■ Mountable top thickness: Clamp (pinched to fix): 0.4 - 3.3 inches (10 - 85 mm), Grommet (punched through holes): 0.4 - 3.3 inches (10 - 85 mm). ■Fixing method: Clamp type/grommet type ■ Number of Axis: 5 axis ■ Set Includes: Arm x 1, clamp plate x 1, clamp x 1, top plate for grommet x 1, wing nut x 1, grommet bolt x 1, bottom plate for grommet x 1. ■ Set Includes: Screws x 2, countersunk screws x 3, hex wrench (small) x 1, hex wrench (large) x 1, screws (M4 x 12) x 4, screws (M5 x 12) x 4, washers x 4. 【Description】 ■ This is a gas spring type single monitor arm that can be used with monitors ranging from 17 to 32 inches. ■ Utilize the space under the monitor to allow you to use a wide range of desk surfaces. ■ Gas spring type that can be moved with light force. ■ You can freely move the position of the monitor and set it to your preferred position. ■ Single arm type that allows you to install 1 monitor. - 5-axis articulated arm type with a wide range of motion. ■ Compatible with monitors that comply with VESA standards (75mm x 75mm, 100mm x 100mm). ■ You can choose between 2 mounting methods that clamp onto the top plate of your desk and the grommet type which allows you to drill a hole in the top plate and fix it through the bolt. ■ Attach screws to the back of the monitor and hang the screws from the bottom to the VESA mount mounted to the arm. ■ Once the angle of use of the monitor is determined, please tighten the screws on the connection part and fix it. ■ Comes with an arm and integrated cable holder to neatly organize cables from your monitor. ■ This product is characterized by smooth movement after the monitor is installed. By adjusting the strength of the gas spring, you can adjust the firmness of moving up and down. Product inquiries Elecom General Information Center TEL. 0570-084-465 FAX. 0570-050-012 Reception Time / 10:00 - 19:00 24/7

• Gas spring loaded single monitor arm fits monitors between 17 and 32 inches
• Once the angle of use of the monitor is determined, please tighten the screws on the connection part and fix it
• Maximize the space under your monitor to make more space on your desk
• Gas spring type that can be moved with light force
• You can freely move the position of your monitor to your preferred position
• This is a single arm type that allows you to install a single monitor

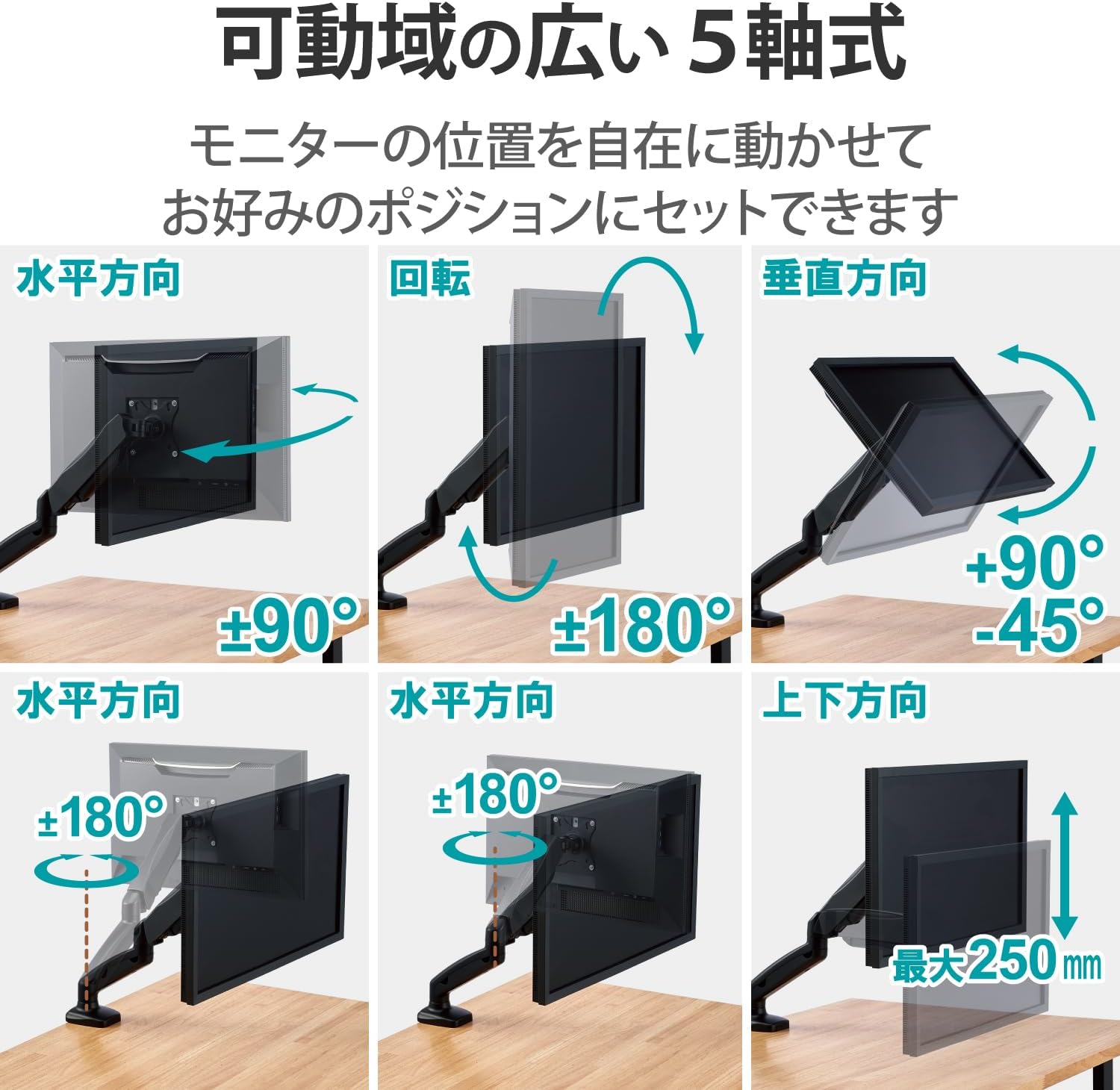

• 5-axis articulated arm type with a wide range of motion
• Compatible with monitors that comply with VESA (75mm x 75mm, 100mm x 100mm)

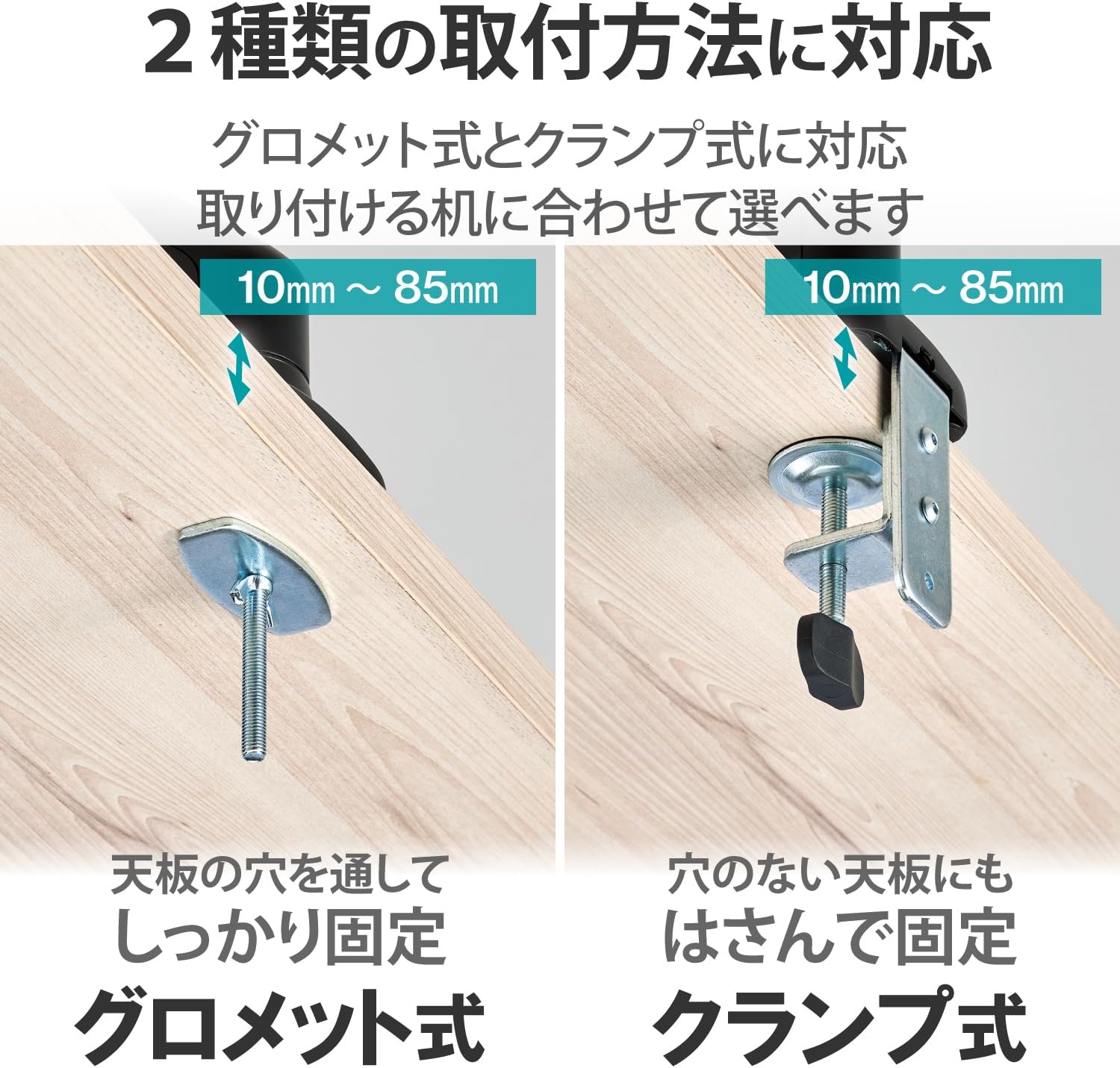

• You can choose between 2 mounting methods: Clamp-on to hold onto your desk top and grommet top to secure it through the bolt
• Attach screws to the back of the monitor and hang the screws from the bottom to the VESA mount mounted to the arm
