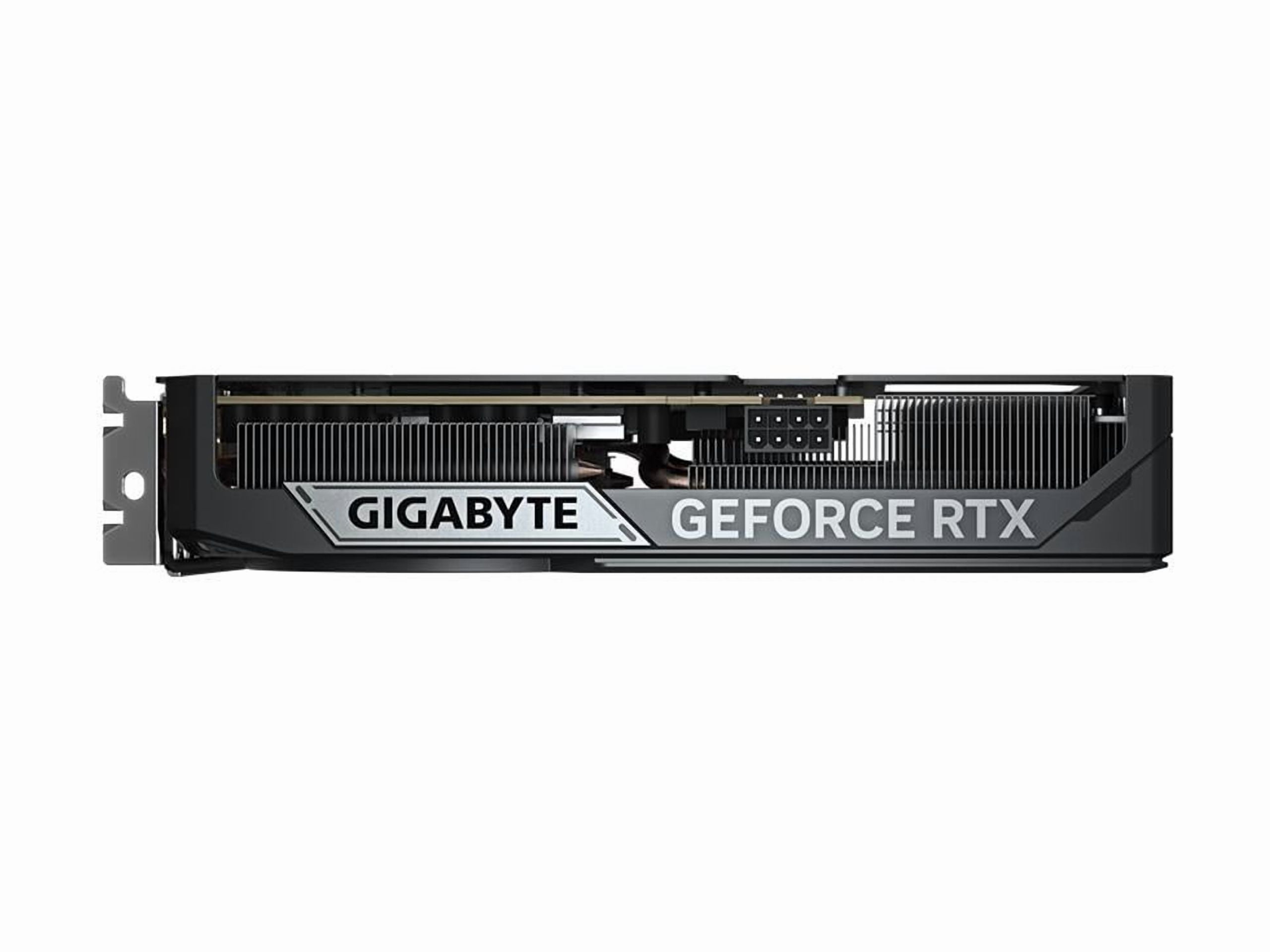

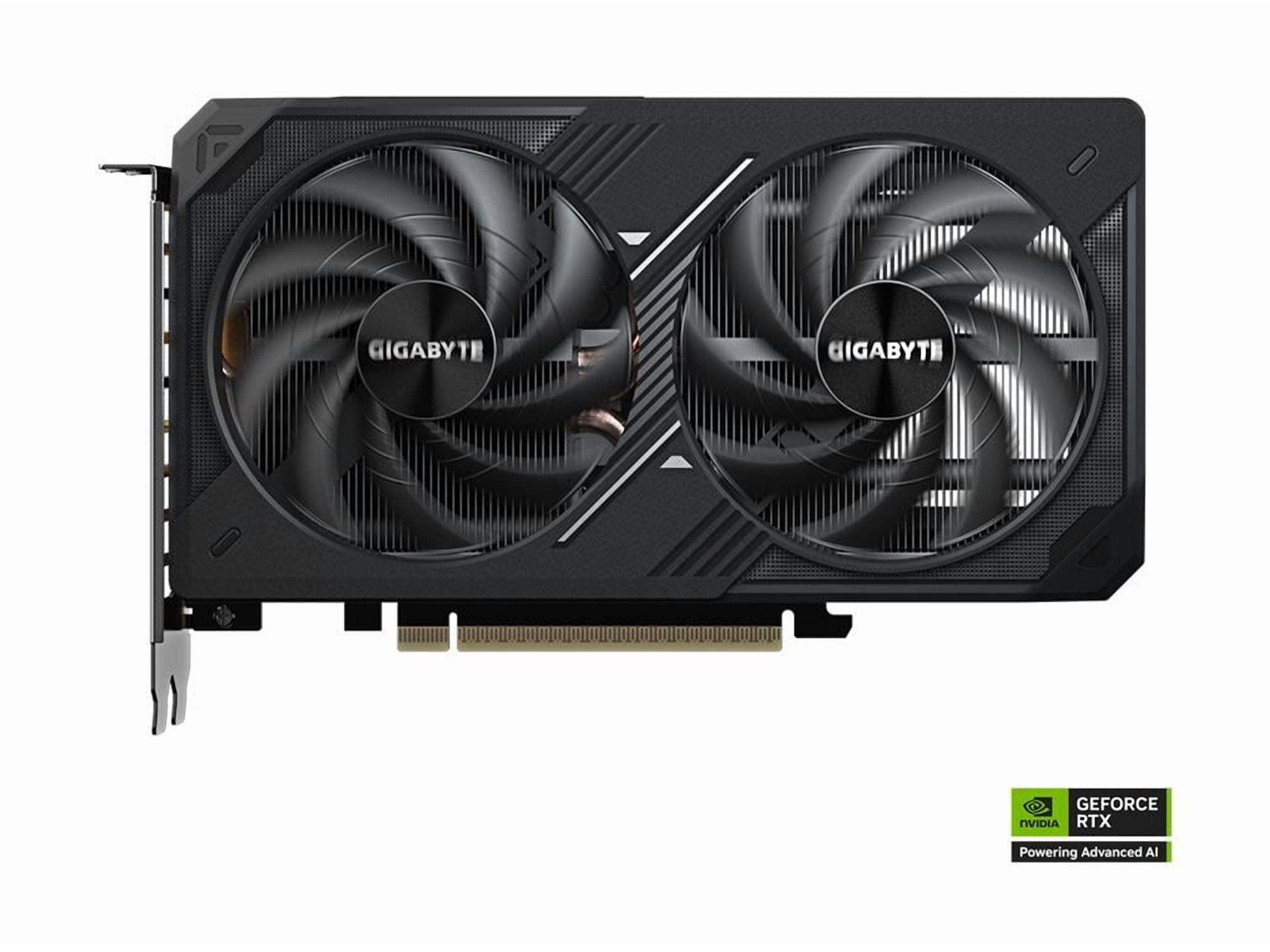

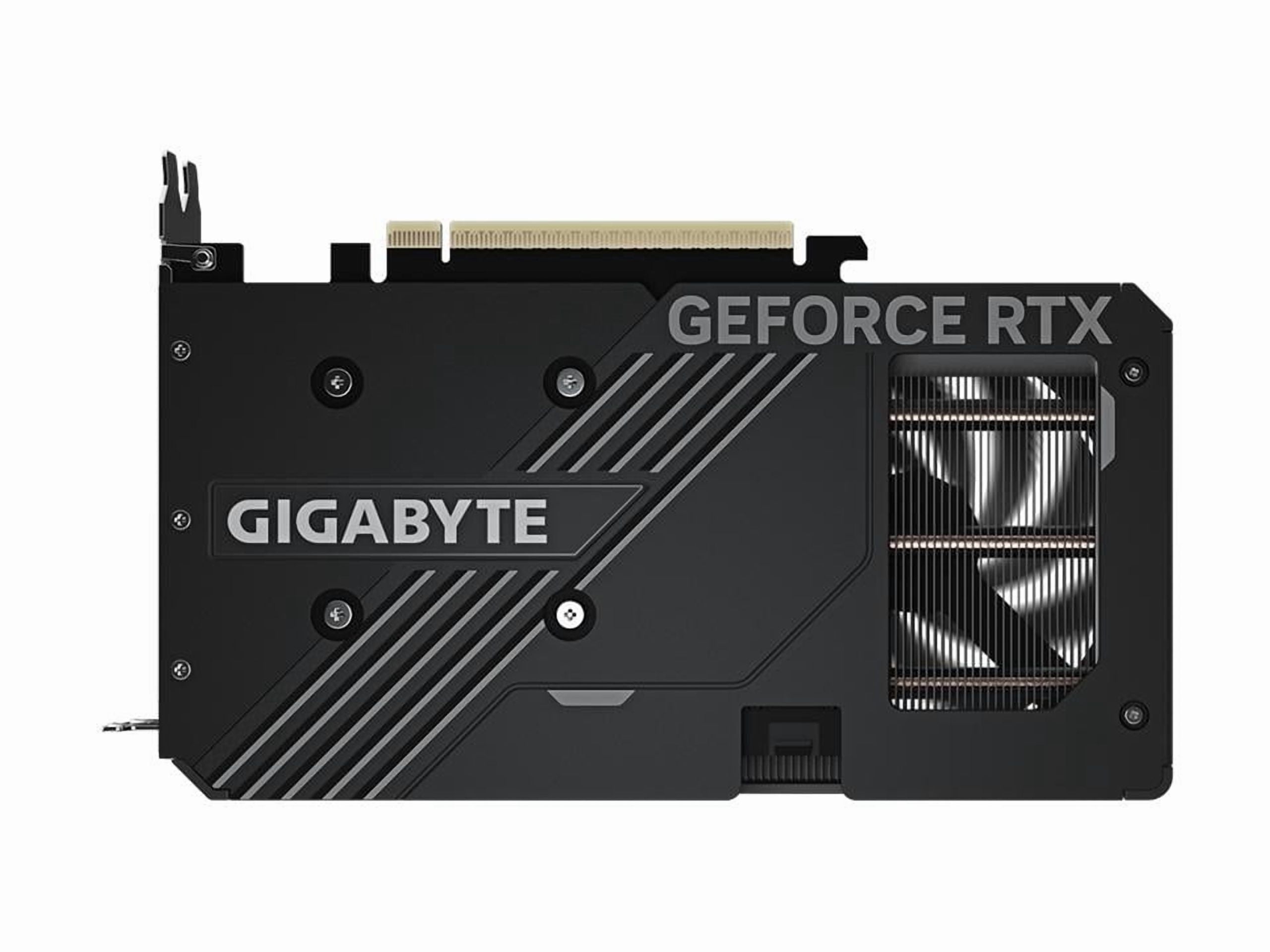

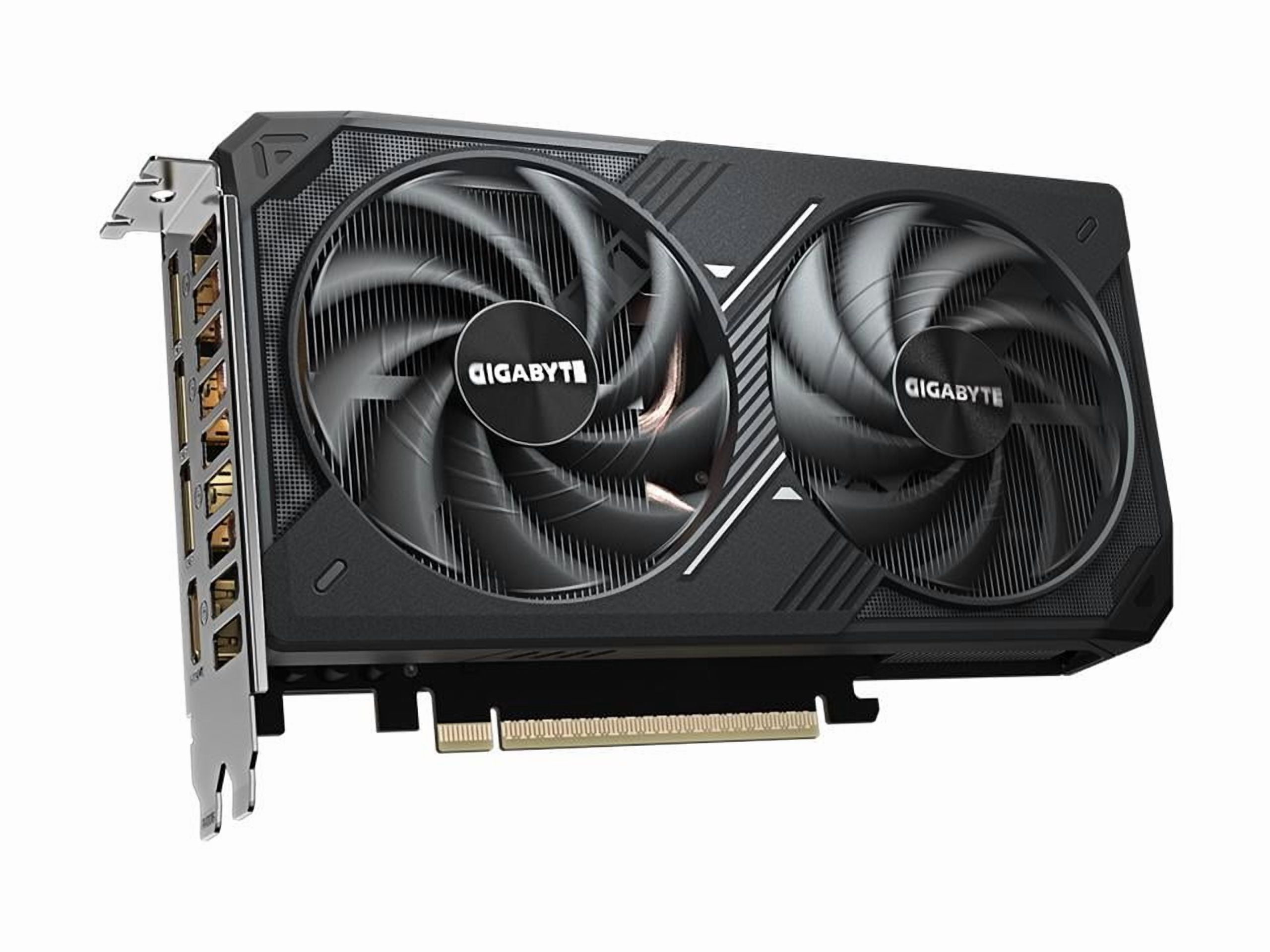

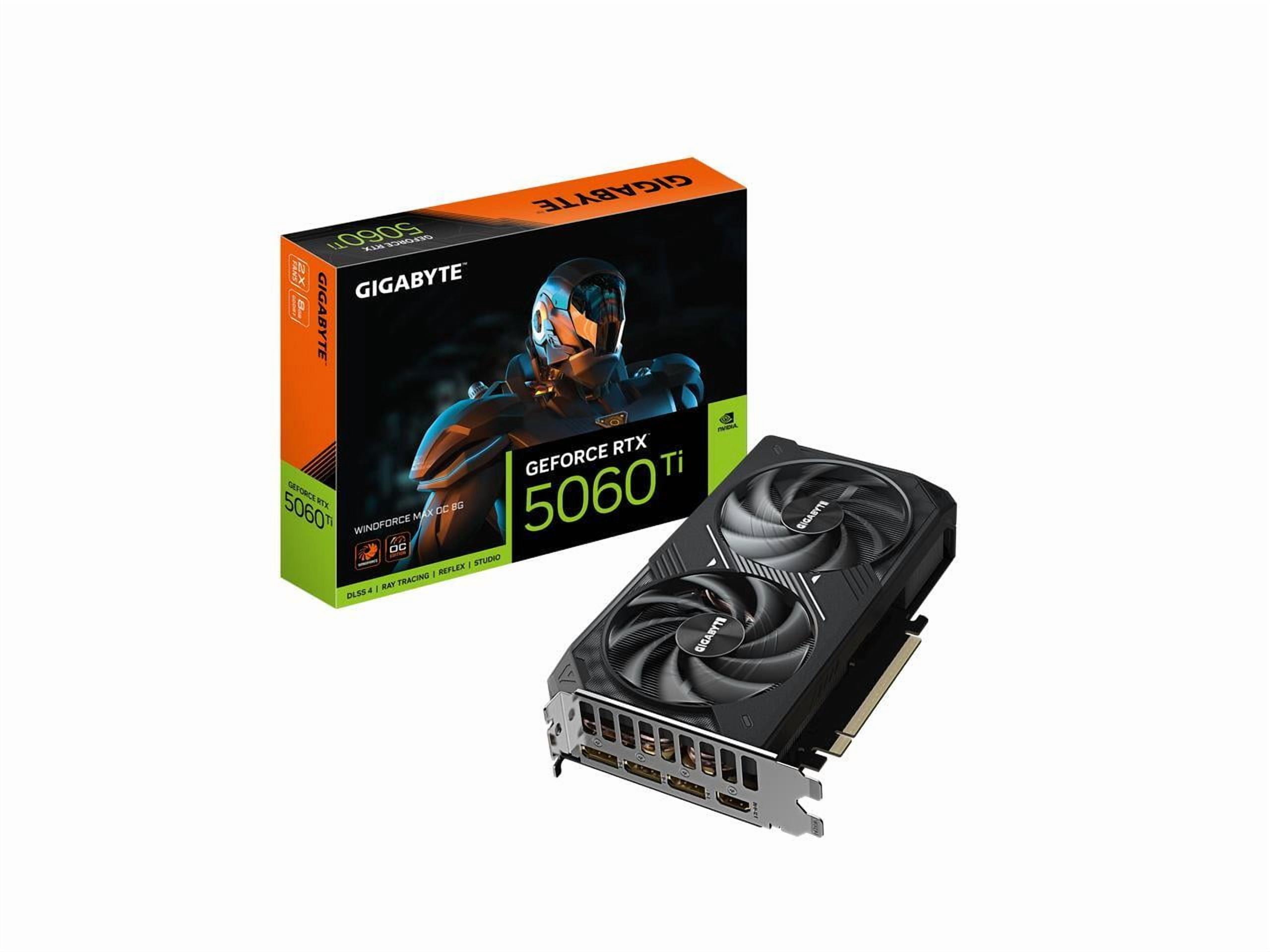

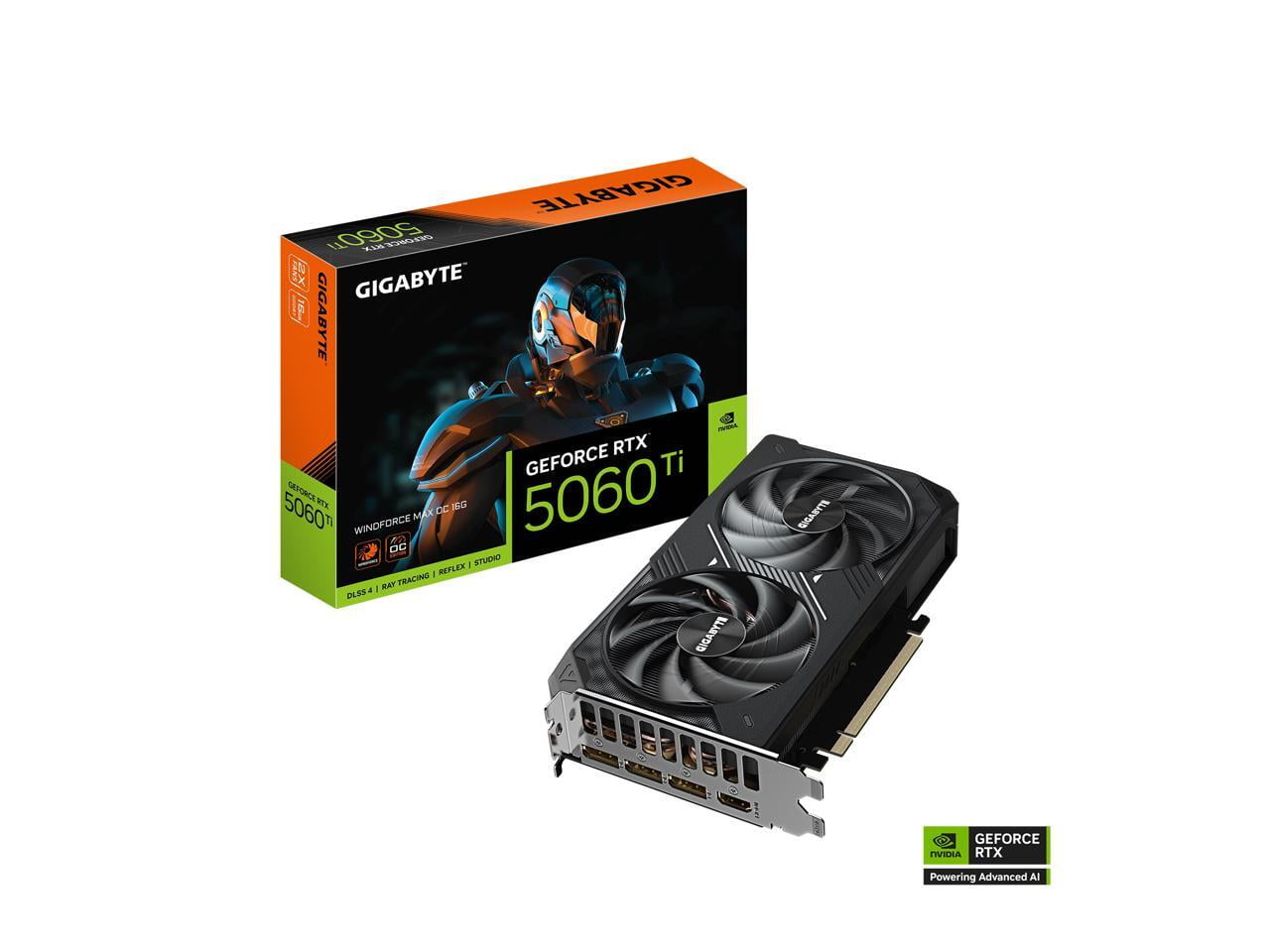

GIGABYTE WindForce GeForce RTX 5060 Ti 16GB GDDR7 PCI Express 5.0 x8 ATX Graphics Card GV-N506TWF2MAX OC-16GD
Product details
| Management number | 230462097 | Release Date | 2026/06/18 | List Price | US$239.99 | Model Number | 230462097 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

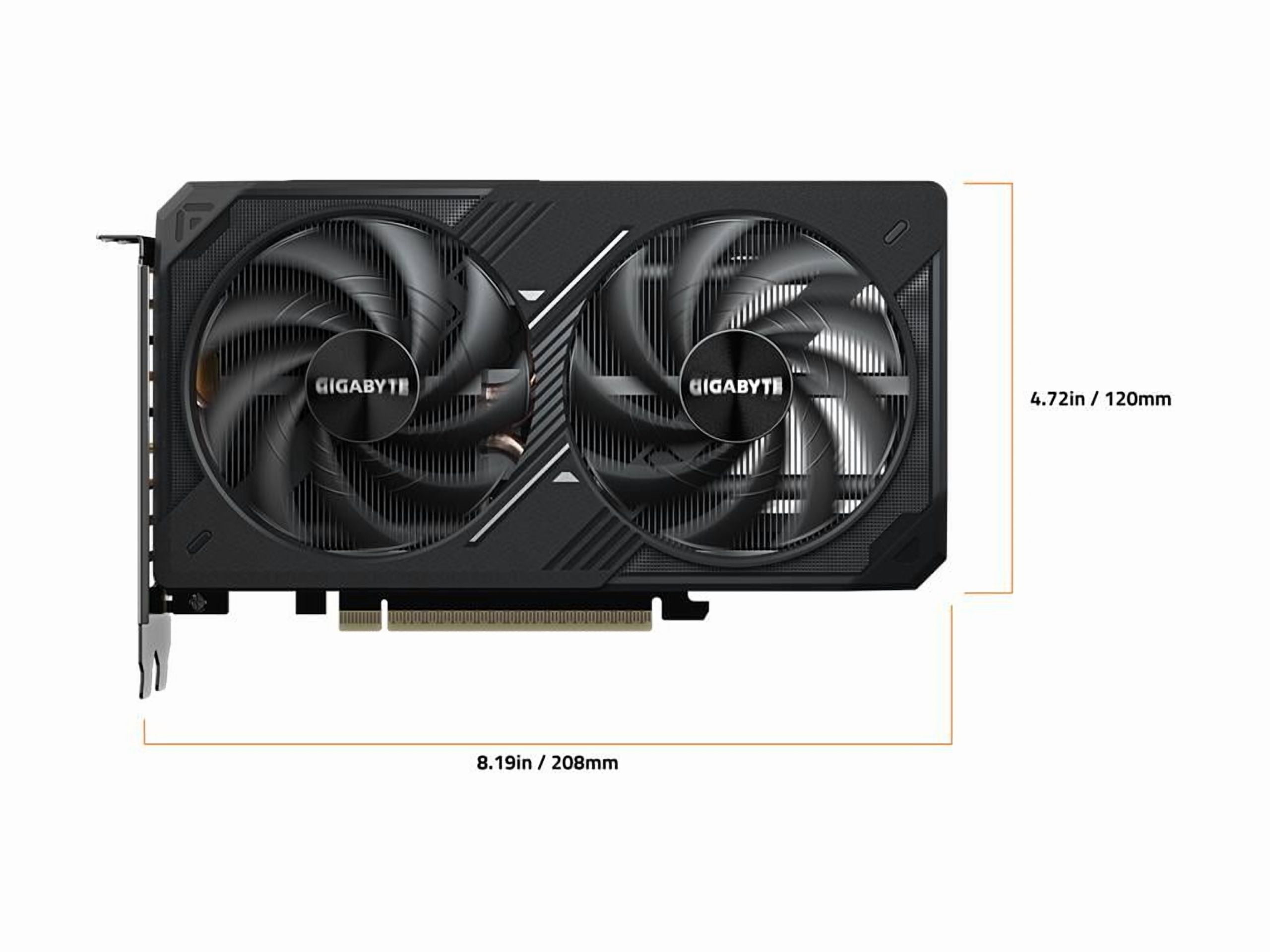

<b><u>Technical Information</u><br></b><br><b>API Supported:</b> DirectX 12, OpenGL 4.6<br><b>Number of Monitors Supported:</b> 4<br><b>Features:</b> Dual-fan Cooler, Ray Tracing<br><b>Maximum Digital Display Resolution:</b> 7680 x 4320<br><b>CUDA Cores:</b> 4608<br><b>AI-powered:</b> Yes<br><br><b><u>Processor & Chipset</u><br></b><br><b>Chipset Manufacturer:</b> NVIDIA<br><b>Chipset Line:</b> GeForce<br><b>Chipset Series:</b> RTX<br><b>Chipset Model:</b> RTX 5060 Ti<br><b>GPU Clock:</b> 2.59 GHz<br><br><b><u>Memory</u><br></b><br><b>Standard Memory:</b> 16 GB<br><b>Memory Technology:</b> GDDR7<br><b>Bus Width:</b> 128 bit<br><br><b><u>Interfaces/Ports</u><br></b><br><b>Host Interface:</b> PCI Express 5.0<br><b>DisplayPort:</b> Yes<br><b>Number of DisplayPort Outputs:</b> 3<br><b>HDMI:</b> Yes<br><b>Number of HDMI Outputs:</b> 1<br><br><b><u>Power Description</u><br></b><br><b>Power Supply Wattage:</b> 650 W<br><b>Power Connector:</b> 1x 8-pin<br><br><b><u>Physical Characteristics</u><br></b><br><b>Form Factor:</b> Plug-in Card<br><b>Cooler Type:</b> Active Cooler<br><b>Height:</b> 1.6"<br><b>Width:</b> 4.7"<br><b>Length:</b> 8.2"<br><br><b><u>Miscellaneous</u><br></b><br><b>Platform Supported:</b> PC<br><br><b><u>Warranty</u><br></b><br><b>Limited Warranty:</b> 3 Year
- 16GB 128-Bit GDDR7
- Core Clock 2587 MHz

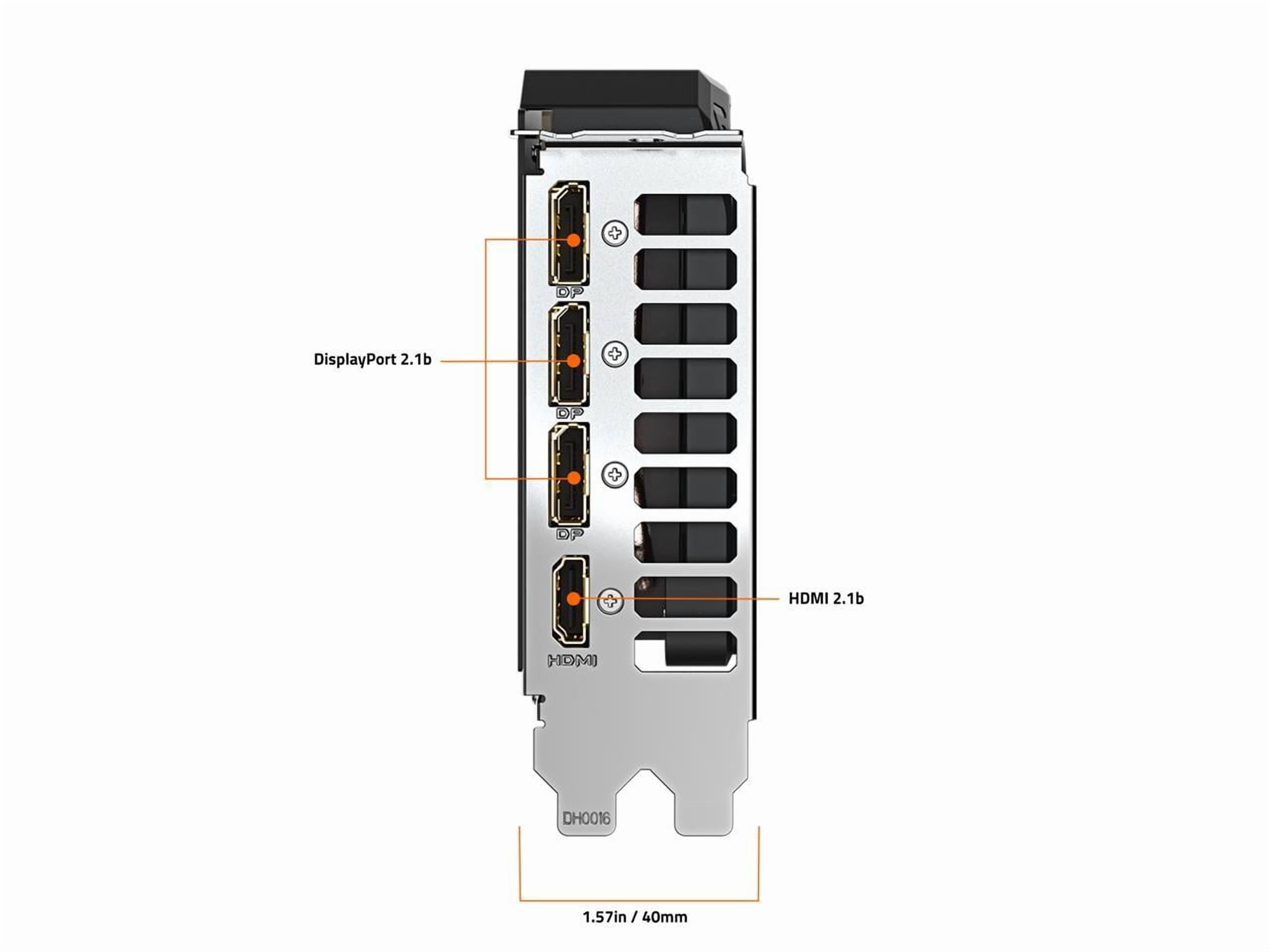

- 1 x HDMI 2.1b 3 x DisplayPort 2.1b
- 4608 Cores CUDA Cores
- PCI Express 5.0 x8
| Graphics | NVIDIA GeForce RTX 5060 Ti |
|---|---|
| Graphics processor | Dedicated |
| Ram memory | 16 GB |
| Brand | GIGABYTE |
| Inputs/Outputs | Inputs - PCI Express 5.0 & Outputs - HDMI(1),DisplayPort(3) |
| Input/output quantity | 4 |
| In/Out type | HDMI |
| Height | 2 in |
| Model name | GV-N506TWF2MAX OC-16GD |
| Manufacturer | GIGABYTE TECHNOLOGY |
| Weight | 1.9 lb |
| Input/output direction | Output |
