HSH Prewired Loaded Pickguard, with Humbucker & Single coil Pickups for Ibanez Guitar

Performance and Configuration Pickup Configuration: Features an HSH (double coil-single coil-double coil) layout, with an 8.6K double coil pickup at the neck (which can be split into a 4.3K single coil tone), a 6.4K single coil pickup in the middle (which can be split into a 3.2K single coil tone), and a 13.8K dual-coil pickup at the bridge (which can be split into a 6.9K single-coil tone). This configuration accommodates a wide range of tonal preferences, from warm, full-bodied dual-coil tones to bright, clear single-coil tones, offering guitarists a wealth of tonal options. Premium Materials: Constructed with copper coils and Alnico 5 magnets, these pickups deliver clear highs, rich mids, and powerful lows, ensuring balanced and outstanding tonal performance, providing guitarists with a high-quality tonal experience. 3-position switching system: Multi-function switch: Activates the neck pickup at any of the 5 switch positions, allowing for seamless blending of neck and bridge tones and expanding tonal possibilities for performance. Coil split switch: Converts the bridge dual-coil pickup into a single-coil tone, ideal for clean or vintage-style sounds, offering guitarists additional tonal variation options. Mute Switch (Mute Button): Instantly cuts off the output to achieve staccato effects or mute functionality without needing to lower the volume, adding more expressiveness and control to your performance. Pre-wired and Easy to Install: All components are pre-wired; simply install them in place, connect the output jack and ground wire, and you're ready to play. High-quality construction: The pickguard is made of durable PVC material and comes with a protective film (remove before use). It features copper-axis potentiometers, stainless steel switches, and clearly labeled wires (black for hot, green for ground, red and white for coil split), ensuring accuracy and convenience during installation and use. Compatibility: Suitable for most RG-style electric guitars with pickup hole spacing of 50mm at the neck, 50mm at the middle, and 52mm at the bridge. Please refer to the size chart before purchase; minor adjustments may be required to ensure a perfect fit. Package Contents 1 x 3-layer HSH RG-style pre-wired pickguard 2 x dual-coil pickups (Alnico 5) 1 x single-coil pickup (Alnico 5) 1 x 5-position selector switch 2 x potentiometers (1 x volume, 1 x tone, copper shaft) 3 x single-pole switches (multi-function switch, coil split switch, mute switch) 1 x 400V/200V capacitor 1 x stereo cylindrical output jack 11 x screws Weight: Approximately 700g per set

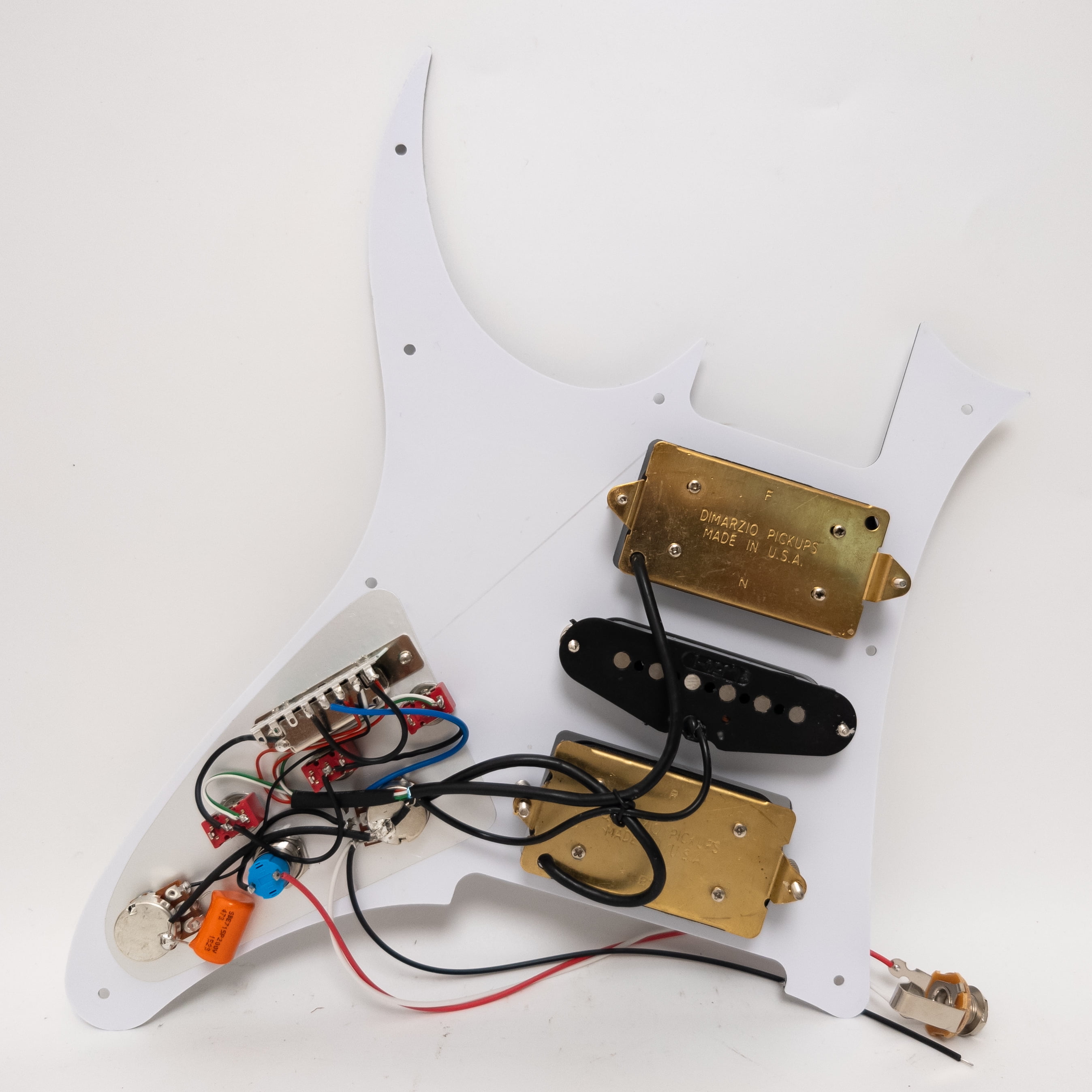

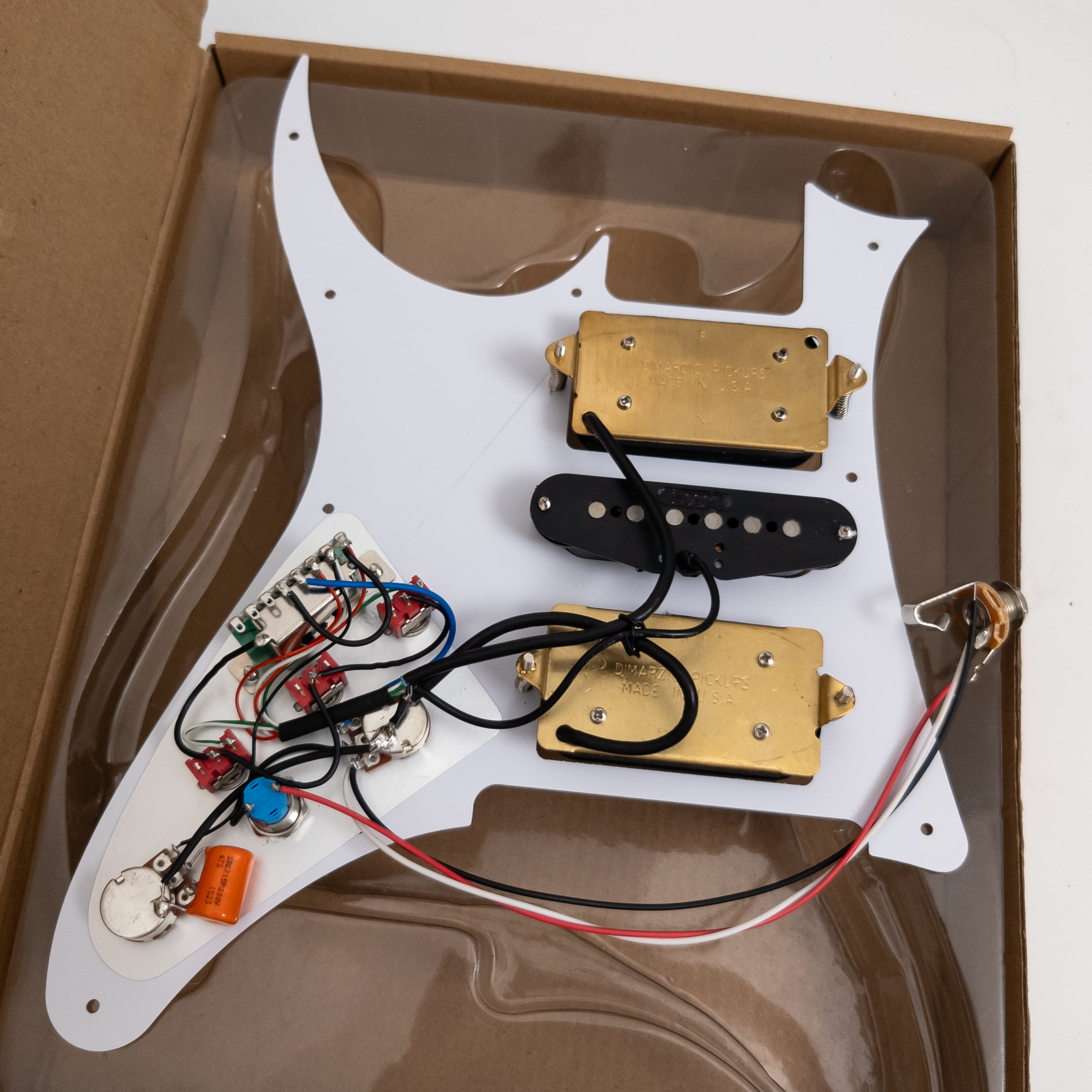

• Pre-installed pickguard custom-designed for RG guitars, featuring integrated humbucker and single-coil pickups—no soldering required.
• The humbucker bridge pickup delivers rich, powerful output ideal for rock and metal styles; the single-coil neck/middle pickups offer bright, clear tones.
• Features HSH brand professional components with pre-wired 5-way selector switch and volume/tone knobs, compatible with most RG/S series models.
