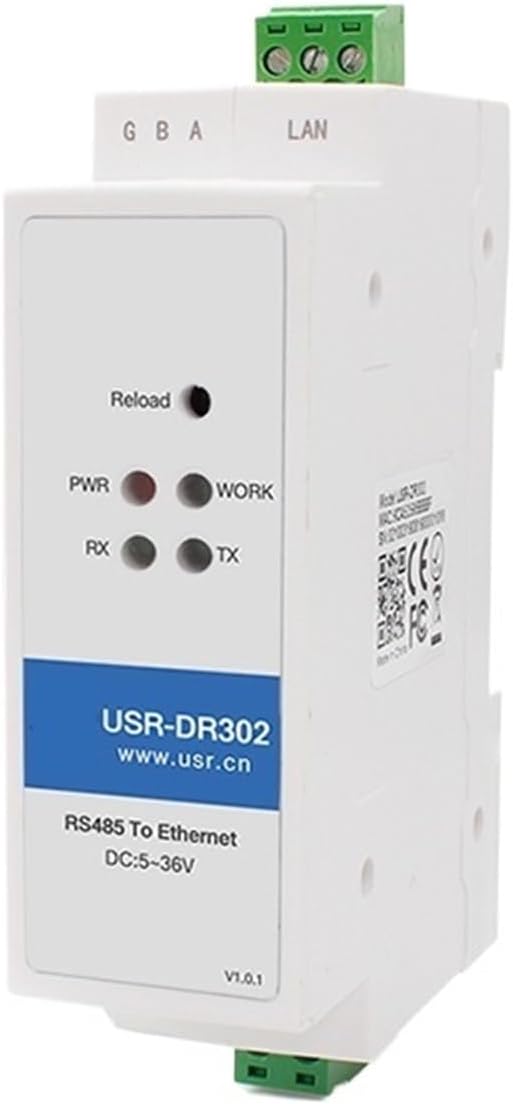

USR-DR302 DIN-Rail RS485 Serial Port to Ethernet Converter Server IOT Device Support Modbus RTU to Modbus(with Power Adapter)
Product details
| Management number | 222565072 | Release Date | 2026/05/04 | List Price | US$58.79 | Model Number | 222565072 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Serial AdaptersUSR-DR302 Modbus RS485 to Ethernet converter can realize bidirectional transparent transmission between RS485 and Ethernet. Via web-page or software, rs485 to Ethernet Converter can realize serial data and TCP/IP data package transparent transmission.RS485 Port, Industrial GradeStandard DIN-rail mountingModbus RTU to Modbus DescriptionParameterValueHardwareWork VoltageDC 5.0-36.0 VWork Current130mA@5VEthernet PortRJ45,10/100MbpsSerial Port Baud rate600-460.8K(bps)Serial PortRS485*1SoftwareNetwork ProtocolTCP/IP, UDP, ARP,ICMP,IPV4IP TypeStatic IP,DHCPDNSSupportConfigurationSoftware, Web-page, AT commandWork Mode Server/TCP Client/UDP Server/UDP ClientModbus RTU to Similar RFC2217SupportHttpd ClientSupport Server ConnectionSupport to connect max 8 clientNetwork CachingSend: 6Kbyte, Receive:4KbyteSerial Port CachingReceive:1KbyteAverage Transmission Delay<;10msSoftwareVCOM, USRIOT_Cloud, Setup software, test proformaPackaging Mechanism4 bytes package time1024 bytes package lengthOthersCertificate, ,FCCGradeIP30, 1.5KVSize71.0x60.0x25.0mmWork Temp-40-85cStorage Temp-40-105cWork Humidity5%-95% RHStorage Temp5%-95% RH==========High-concerned chemical : None Type : US,EU,UK,AUSize : #Model Number : USR-DR302Certification : ,FCC,Item Type : Communication Converter
- Serial Adapters
- USR-DR302 DIN-rail RS485 Serial Port To Ethernet Converter Server IOT Device Support Modbus RTU to Modbus
| Brand | XCYIKML |
|---|---|
| Color | With power adapter |
| Unit Count | 1.0 Count |
| Manufacturer | XCYIKML |
| Model Number | XCYIKML |
| Connector Type | Auxiliary |
| Mfr Part Number | XCYIKML |
| Number of Items | 1 |
| Package Quantity | 1 |
| Compatible Devices | Amplifier |
